Versatile design

The inward opening Tilt & Turn window is a very popular choice in Scandinavia and Western Europe. The German made ROTO – NT hinge system enables the window to be tilted from the top to allow a gentle ventilation or alternatively by turning the handle 180 degrees, the side hinged window can be open inwards. This is a very versatile design and is often used to serve as a Fires Egress to comply with UK standard building regulations. For safety and security, the windows are fitted with a night lock position, child restrictor and blow back restrictor as standard. Available in timber and alu-clad timber.

Timber Tilt & Turn Window

Features include:

  • Bespoke made-to-measure inward opening window
  • Available in a range of U-Values from 1.4 to 0.7
  • Constructed using finger jointed laminated pine timber designed to last a lifetime
  • Advanced insulation and glass technology for ultimate weather protection
  • Single handle operation and fully reversible for safe and easy cleaning

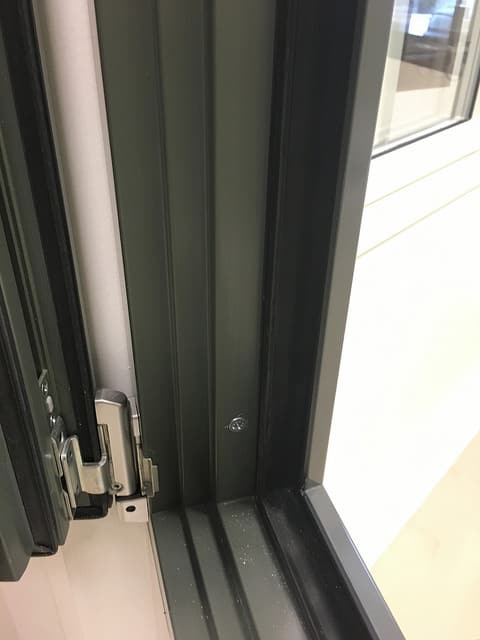

  • ROTO – NT / Designo hinges

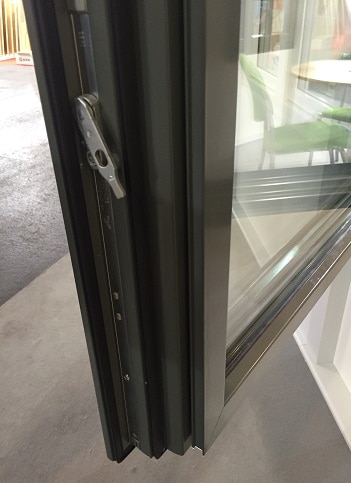

  • Four-point mechanism: fully locked, ventilation, child safe and safe-clean
  • Choice of glazing bars and ironmongery
  • Optional Trickle ventilation with matching RAL colour
  • Factory finish to any RAL or NCS colour
  • Super Low-E double glazed panel with argon filled unit. Triple glazing with warm edge spacer optional
  • Delivery from 6 – 8 weeks
  • Installation service available on request

Alu-clad Timber Tilt & Turn Window

Broxwood’s Timber Tilt & Turn Window is also available with aluminium cladding. The addition of low-maintenance hard-wearing aluminium cladding provides the ultimate protection against the elements.

Additional features include:

  • Fully treated timber with alu cladding for maximum durability and longevity
  • Triple Glazing with warm edge spacer fitted as standard
  • Increased strength and durability
  • Ultimate protection against the elements
  • Sleek contemporary look and feel
  • Virtually maintenance free

IV78 Technical Information:

  • Frame: 78mm wide x 78mm deep
  • Sash: 78mm wide x 78mm deep
  • Glass: Double Glazing 24mm or Triple Glazing 36mm and 52mm / Argon gas and choice of coating

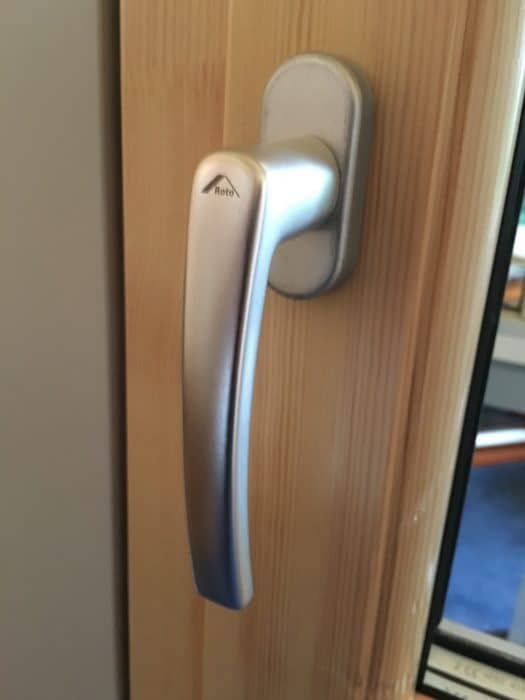

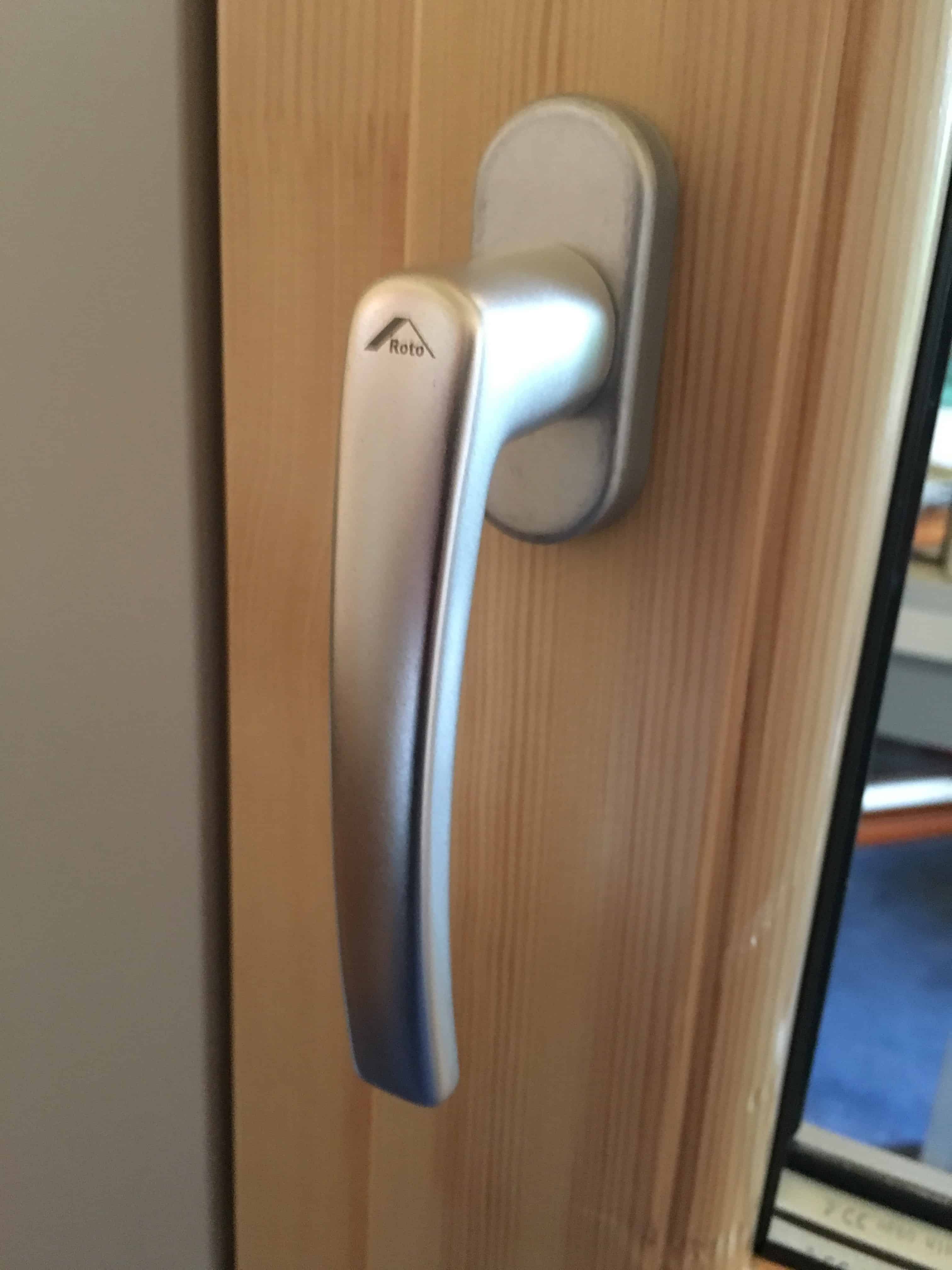

  • Hardware: ROTO – NT / Designo. ROTO lockable handle with limited choice of colour finish

Save Energy by choosing the right U-value

Broxwood windows and doors are amongst the most energy efficient on the market. We offer five energy ranges, from 1.4 to 0.7 U-value, all of which exceed current UK building regulations. Choosing the right U-value is mostly common sense; the simple rule being all our windows will save energy but choosing a U-value which is over specified for your property is unlikely to return greater savings.

Technical Drawings
