Flush casement window

Broxwood’s Top Hung outward opening casement window is sometimes used as a hopper or fanlight window configures within a unit with a fixed pane below. A useful way to create a gentle breeze without opening a larger window or door. The harder the wind and rain drive at the window sash, the tighter and more sealed they become. For safety and security, the windows are fitted with an ASSA espagnolette locking system, child restrictor and blow back restrictor as standard. Available in timber and alu-clad timber.

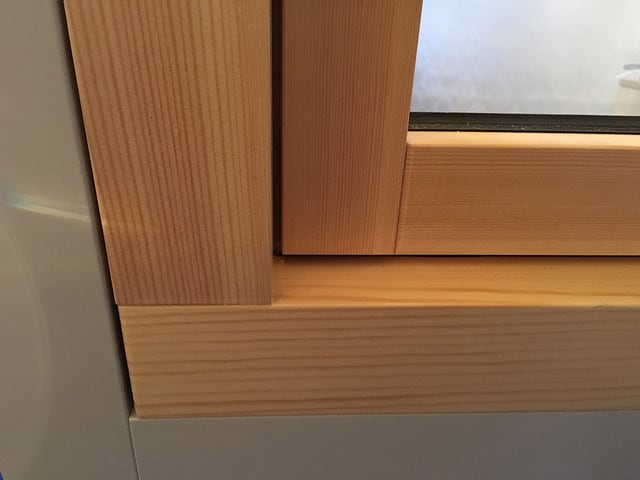

Timber Top Hung Window

Features include:

  • Bespoke made-to-meaure outward opening window
  • Available in a range of U-Values from 1.4 to 0.7
  • Constructed using finger jointed laminated pine timber designed to last a lifetime
  • Advanced insulation and glass technology for ultimate weather protection

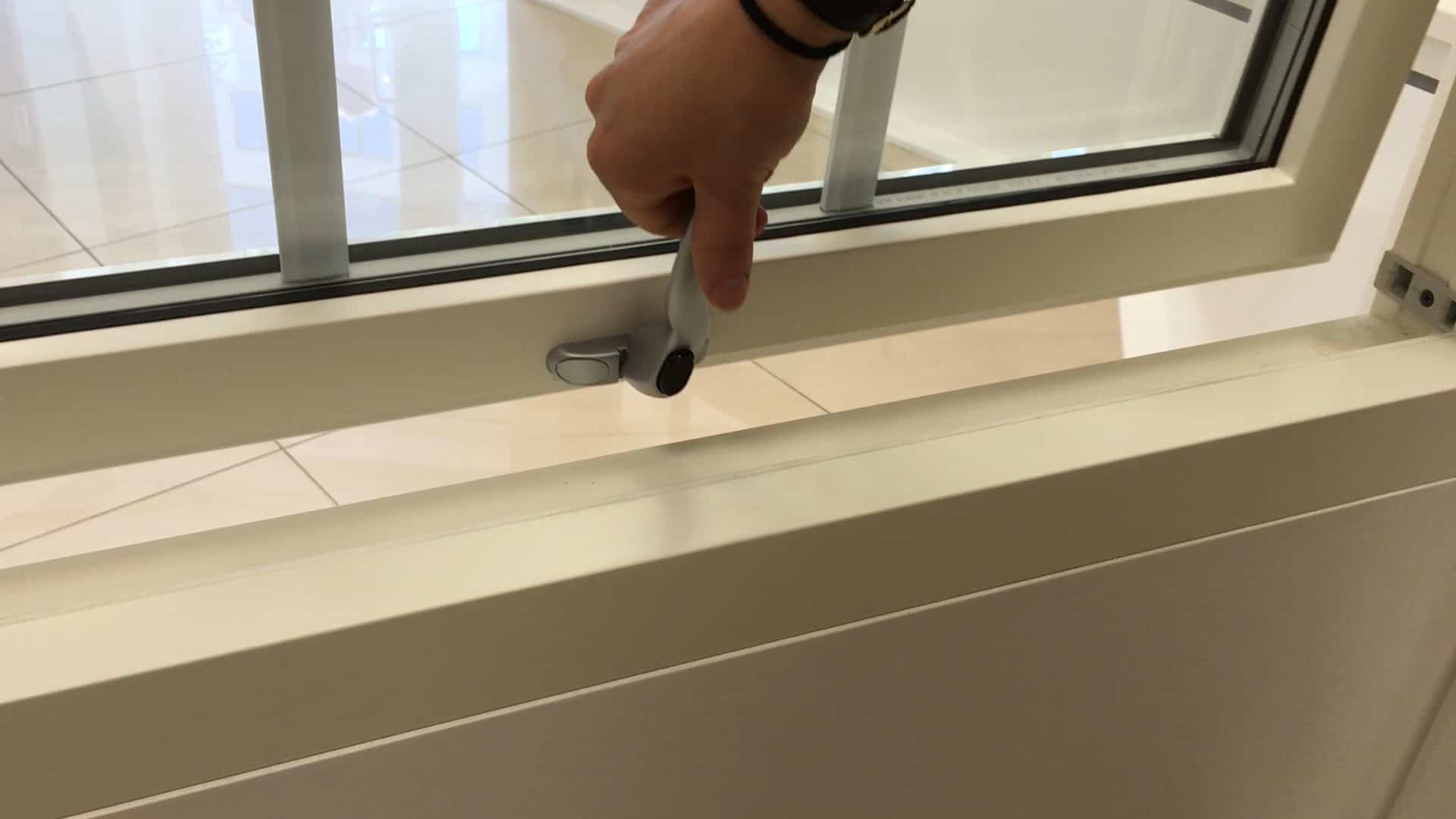

  • Single handle operation
  • SPILKA hinges
  • Three point mechanism: fully locked, ventilation, child safe restrictor
  • Secure ASSA espagnolette locking system
  • Choice of glazing bars and ironmongery
  • Optional Trickle ventilation with matching RAL colour
  • Factory finish to any RAL or NCS colour
  • Super Low-E double glazed panel with argon filled unit. Triple glazing with warm edge spacer optional
  • Delivery from 6 – 8 weeks
  • Installation service available on request

Alu-clad Timber Top Hung Window

Broxwood’s Timber Top Hung Window is also available with aluminium cladding. The addition of low-maintenance hard-wearing aluminium cladding provides the ultimate protection against the elements.

Additional features include:

  • Fully treated timber with alu cladding for maximum durability and longevity
  • Triple Glazing with warm edge spacer fitted as standard
  • Increased strength and durability
  • Ultimate protection against the elements
  • Sleek contemporary look and feel
  • Virtually maintenance free

105_76 Technical Information:

  • Frame: 57mm wide x 105mm deep
  • Sash: 65mm wide x 36mm deep
  • Glass: Double Glazing 24mm or Triple Glazing 36mm and 52mm / Argon gas and choice of coating
  • Hardware: SPILKA hinge. ASSA locking system. TITON lockable handle with limited choice of colour finish

Save Energy by choosing the right U-value

Broxwood windows and doors are amongst the most energy efficient on the market. We offer five energy ranges, from 1.4 to 0.7 U-value, all of which exceed current UK building regulations. Choosing the right U-value is mostly common sense; the simple rule being all our windows will save energy but choosing a U-value which is over specified for your property is unlikely to return greater savings.

Technical Drawings
